TAS2564

7-W Class-D Smart Amp

TAS2564 Features

* 1 Key Features

* 256 Level, 13-V Class-H Boost

* Speaker Current and Voltage Sense

* Inter Chip Alignment (ICLA) of gain across devices.

* Output Power

* 7-W 0.1% THD+N (8 Ω at 3.8 V)

* Power Consumption (1% THD+N, 4.2 V into 8 Ω)

* 83

TAS2564 General Description

The TAS2564 is a digital input, Class-D audio amplifier with a 256 level, 13 V Class-H boost. The robust 13 V Class-H boost provides the power needed for peak output while the algorithmicallycontrolled 256 level boost reduces the average power consumption. The boost is easily configured with PurePat.

TAS2564 Datasheet (2.21 MB)

Preview of TAS2564 PDF

Datasheet Details

Part number:

TAS2564

Manufacturer:

Texas Instruments ↗

File Size:

2.21 MB

Description:

7-w class-d smart amp.
Product Folder Order Now Technical Documents Tools & Software Support & Community TAS2564 SLASEI6A

* OCTOBER 2019

* REVISED DECEM.

📁 Related Datasheet

TAS2560 5.6-W Class-D Mono Audio Amplifier (Texas Instruments)

TAS2562 6.1-W Boosted Class-D Audio Amplifier (Texas Instruments)

TAS2563 6.1-W Boosted Class-D Audio Amplifier (Texas Instruments)

TAS2563P 6.1-W Boosted Class-D Audio Amplifier (Texas Instruments)

TAS2505 2.6W Digital/Analog Input Class-D Speaker Amplifier (Texas Instruments)

TAS2505-Q1 2.6-W Digital/Analog Input Automotive Class-D Speaker Amplifier (Texas Instruments)

TAS2521 Class-D Speaker Amplifier (Texas Instruments)

TAS2552 Class-D Mono Audio Amplifier (Texas Instruments)

TAS2553 Class-D Mono Audio Amplifier (Texas Instruments)

TAS2555 Class-D Mono Audio Amplifier (Texas Instruments)

TAGS

TAS2564 7-W Class-D Smart Amp Texas Instruments

Image Gallery

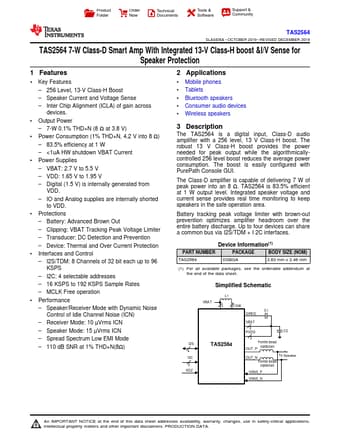

TAS2564 Datasheet Preview Page 2 TAS2564 Datasheet Preview Page 3
