TAS2563

6.1-W Boosted Class-D Audio Amplifier

Texas Instruments

TAS2563 Features

* Key Features

* 11.5 V, 12-step Look-Ahead Class-H boost

* Integrated DSP

* Full Scale Ultrasonic Output to 40kHz

* 2 PDM Microphone inputs

* Powerful Class-D Audio Amplifier :

* 6.1 W 1% THD+N (4 Ω, 3.6 V)

* 5 W 1% THD+N (8 Ω, 3.6 V)

TAS2563 General Description

The TAS2563 is a digital input Class-D audio amplifier optimized for efficiently driving high peak power into small loudspeakers. The Class-D amplifier is capable of delivering 6.1 W of peak power into a 4 Ω load at battery voltage of 3.6 V using the integrated 11.5V Class-H boost, or 10W peak powe.

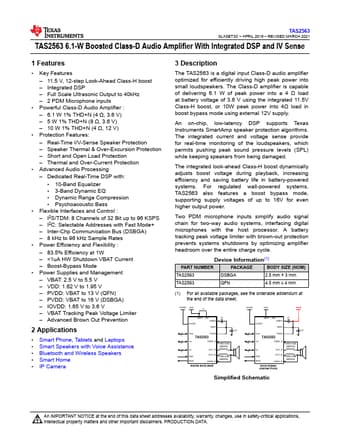

TAS2563 Datasheet (5.67 MB)

TAS2563 Datasheet Preview — Preview of TAS2563 PDF

Datasheet Details

Part number:

TAS2563

Manufacturer:

Texas Instruments ↗

File Size:

5.67 MB

Description:

6.1-w boosted class-d audio amplifier.
TAS2563 SLASET3C

* APRIL 2019

* REVISED MARCH 2021 TAS2563 6.1-W Boosted Class-D Audio Amplifier With Integrated DSP and IV Sense 1 F.
