THS4001 - 270-MHz HIGH-SPEED AMPLIFIER

4 Closed-Loop Gain * dB 2 The THS4001 is a very high-performance, voltage-feedback operational amplifier especially 0 suited for a wide range of video applications.

The device is specified to operate over a wide range of supply voltages from ± 15 V to ± 2.5 V.

With a *2 3.9 pF

THS4001 270-MHz HIGH-SPEED AMPLIFIER SLOS206A DECEMBER 1997 REVISED MARCH 1999 D Very High Speed 270 MHz Bandwidth (Gain = 1, 3 dB) 400 V/µsec Slew Rate 40-ns Settling Time (0.1%) D High Output Drive, IO = 100 mA D Excellent Video Performance 60 MHz Bandwidth (0.1 dB, G = 1) 0.04% Differential Gain 0.15° Differential Phase D Very Low Distortion THD = 72 dBc at f = 1 MHz D Wide Range of P

THS4001-etcTI.pdf

Preview of THS4001 PDF

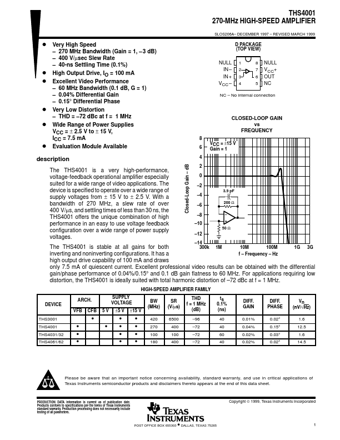

THS4001 Datasheet Preview Page 2 THS4001 Datasheet Preview Page 3
