THS4012, THS4011 - 290-MHz LOW-DISTORTION HIGH-SPEED AMPLIFIERS

Texas Instruments

📥 Download Datasheet

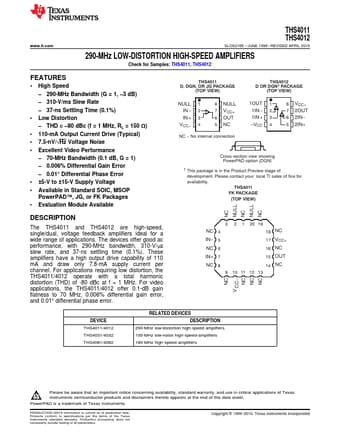

THS4012 Datasheet Preview — This datasheet PDF includes multiple part numbers: THS4012, THS4011. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	THS4012, THS4011
Manufacturer	Texas Instruments ↗
File Size	2.10 MB
Description	290-MHz LOW-DISTORTION HIGH-SPEED AMPLIFIERS
Datasheet	THS4011-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: THS4012, THS4011. Please refer to the document for exact specifications by model.

THS4012 Product details

Description

The THS4011 and THS4012 are high-speed, single/dual, voltage feedback amplifiers ideal for a wide range of applications.

Features

1.
2 High Speed.
290-MHz Bandwidth (G = 1,.
3 dB).
310-V/ms Slew Rate.
37-ns Settling Time (0.1%).
Low Distortion.
THD =.
80 dBc (f = 1 MHz, RL = 150 Ω).
110-mA Output Current Drive (Typical).
7.5-nV/√Hz Voltage Noise.
Excellent Video Performance.
70-MHz Bandwidth (0.1 dB, G = 1).
0.006% Differential Gain Error.
0.01° Differential Phase Error.
±5-V to ±15-V Supply V.
