THS4022, THS4021 - High-Speed Amplifiers

Texas Instruments

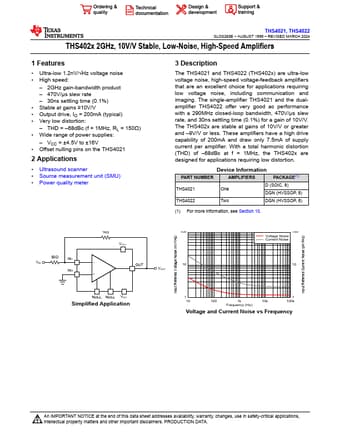

THS4022 Datasheet Preview — This datasheet PDF includes multiple part numbers: THS4022, THS4021. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	THS4022, THS4021
Manufacturer	Texas Instruments ↗
File Size	2.05 MB
Description	High-Speed Amplifiers
Datasheet	THS4021-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: THS4022, THS4021. Please refer to the document for exact specifications by model.

THS4022 Product details

Description

The THS4021 and THS4022 (THS402x) are ultra-low voltage noise, high-speed voltage-feedback amplifiers that are an excellent choice for applications requiring low voltage noise, including communication and imaging. 9V/V or less.

Features

Ultra-low 1.2nV/√Hz voltage noise.
High speed:.
2GHz gain-bandwidth product.
470V/μs slew rate.
30ns settling time (0.1%).
Stable at gains ≥10V/V.
Output drive, IO = 200mA (typical).
Very low distortion:.
THD =.
68dBc (f = 1MHz, RL = 150Ω).
Wide range of power supplies:.
VCC = ±4.5V to ±16V.
Offset nulling pins on the THS4021 2.
