TL1451A-Q1 Datasheet - Texas Instruments

TL1451A-Q1 - Dual PWM Controller

The TL1451A incorporates on a single monolithic chip all the functions required in the construction of two pulse-width-modulation (PWM) control circuits. Designed primarily for power-supply control, the TL1451A contains an on-chip 2.5-V regulator, two error amplifiers, an adjustable oscillator, two .
ąą TL1451A-Q1 DUAL PULSEĆWIDTHĆMODULATION CONTROL CIRCUITS ą SGLS304A JUNE 2005 REVISED JUNE 2008 D Qualified for Automotive Applications D Complete PWM Power Control Circuitry D Completely Synchronized Operation D Internal Undervoltage Lockout Protection D Wide Supply Voltage Range D Internal Short-Circuit Protection D Oscillator Frequency . . . 500 kHz Max D Variable Dead Time Provides Control Over Total Range D Internal Regulator Provides a Stable 2.5-V Reference Supply .

TL1451A-Q1-etcTI.pdf

Preview of TL1451A-Q1 PDF

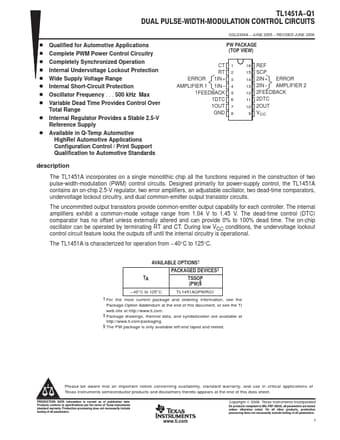

TL1451A-Q1 Datasheet Preview Page 2 TL1451A-Q1 Datasheet Preview Page 3
