TL1454A - Dual-Channel PWM Controller

TL1454A Description

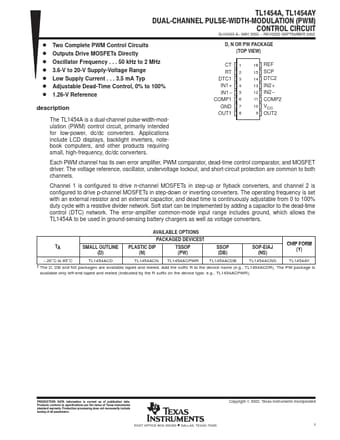

TL1454A, TL1454AY DUALĆCHANNEL PULSEĆWIDTHĆMODULATION (PWM) CONTROL CIRCUIT SLVS423 A * MAY 2002 * REVISED SEPTEMBER 2002 D Two Comple.
The TL1454A is a dual-channel pulse-width-modulation (PWM) control circuit, primarily intended for low-power, dc/dc converters.

TL1454A Applications

* include LCD displays, backlight inverters, notebook computers, and other products requiring small, high-frequency, dc/dc converters. D, N OR PW PACKAGE (TOP VIEW) CT RT DTC1 IN1 + IN1
* COMP1 GND OUT1 1 2 3 4 5 6 7 8 16 REF 15 SCP 14 DTC2 13 IN2 + 12 IN2
* 11 COMP2 10 VCC 9 OUT2
