TL1454Y, TL1454 Datasheet - Texas Instruments

TL1454Y Dual-Channel PWM Controller

The TL1454 is a dual-channel pulse-width-modu- GND 7 OUT1 8 10 VCC 9 OUT2 lation (PWM) control circuit, primarily intended for low-power, dc/dc converters. Applications include LCD displays, backlight inverters, notebook com- puters, and other products requiring small, high-frequency, dc/dc co.

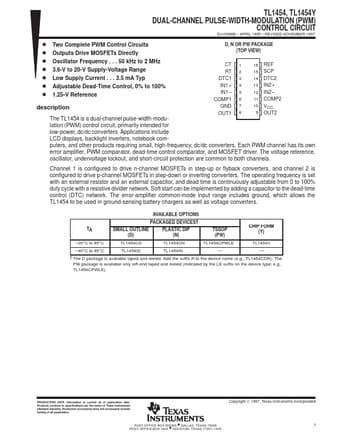

TL1454, TL1454Y DUAL-CHANNEL PULSE-WIDTH-MODULATION (PWM) CONTROL CIRCUIT SLVS086B APRIL 1995 REVISED NOVEMBER 1997 D Two Complete PWM Control Circuits D, N OR PW PACKAGE D Outputs Drive MOSFETs Directly (TOP VIEW) D Oscillator Frequency . . . 50 kHz to 2 MHz D 3.6-V to 20-V Supply-Voltage Range D Low Supply Current . . . 3.5 mA Typ CT RT DTC1 1 2 3 16 REF 15 SCP 14 DTC2 D Adjustable Dead-Time Control, 0% to 100% IN1 + 4 13 IN2 + D 1.25-V Reference IN1 5.

TL1454-etcTI.pdf

This datasheet PDF includes multiple part numbers: TL1454Y, TL1454. Please refer to the document for exact specifications by model.
TL1454Y Datasheet Preview Page 2 TL1454Y Datasheet Preview Page 3

Datasheet Details

Part number:

TL1454Y, TL1454

Manufacturer:

Texas Instruments ↗

File Size:

385.73 KB

Description:

Dual-channel pwm controller.

Note:

This datasheet PDF includes multiple part numbers: TL1454Y, TL1454.
Please refer to the document for exact specifications by model.
