TMAG5123

Hall-Effect Switch

Texas Instruments

TMAG5123 Features

* In-plane, omnipolar Hall-effect switch

* High magnetic sensitivity:

* TMAG5123B: 4.1 mT (typical)

* TMAG5123C: 7.5 mT (typical)

* TMAG5123D: 10.9 mT (typical)

* Supports a wide voltage range

* 2.5-V to 38-V operating VCC range

* No ex

TMAG5123 General Description

The TMAG5123 is a chopper-stabilized omnipolar, active-low, in-plane, Hall-effect switch sensor. The TMAG5123 eases mechanical placement of the sensor by measuring magnetic fields parallel to the surface of the printed circuit board (PCB) in a surface mount SOT-23 package. Different sensitivity lev.

TMAG5123 Datasheet (1.44 MB)

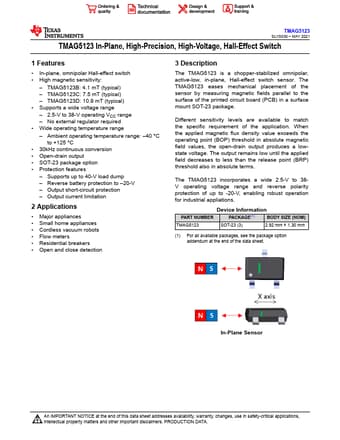

TMAG5123 Datasheet Preview — Preview of TMAG5123 PDF

Datasheet Details

Part number:

TMAG5123

Manufacturer:

Texas Instruments ↗

File Size:

1.44 MB

Description:

Hall-effect switch.
