TMAG5124

Hall-Effect Switch Sensor

Texas Instruments

TMAG5124 Features

* Hall effect switch with 2-wire interface

* Low-level current output options:

* TMAG5124A/B/C/D: 3.5 mA

* TMAG5124E/F/G/H: 6 mA

* Magnetic sensitivity:

* TMAG5124A/E: 4 mT (typical)

* TMAG5124B/F: 6 mT (typical)

* TMAG5124C/G: 10 mT (

TMAG5124 General Description

The TMAG5124 device is a high-precision Hall effect sensor that offers a 2-wire interface designed for industrial designs. The TMAG5124 integrates a current source that switches between two levels depending on the value of the magnetic field applied to the part. While the high value is fixed, the .

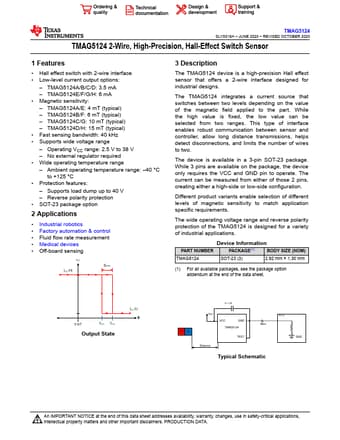

TMAG5124 Datasheet (1.70 MB)

TMAG5124 Datasheet Preview — Preview of TMAG5124 PDF

Datasheet Details

Part number:

TMAG5124

Manufacturer:

Texas Instruments ↗

File Size:

1.70 MB

Description:

Hall-effect switch sensor.
