TMAG5123-Q1 Datasheet - Texas Instruments

Automotive Hall-Effect Switch

TMAG5123-Q1 Features

* AEC-Q100 qualified for automotive applications:

* Temperature grade 0:

* 40°C To +150°C, TA

* In-plane, omnipolar Hall-effect switch

* High magnetic sensitivity:

* TMAG5123B-Q1: 4.1 mT (typical)

* TMAG5123C-Q1: 7.5 mT (typical)

* TMAG5

TMAG5123-Q1 General Description

The TMAG5123-Q1 is a chopper-stabilized omnipolar, active-low, in-plane, Hall-effect switch sensor. The TMAG5123-Q1 eases mechanical placement of the sensor by measuring magnetic fields parallel to the surface of the printed circuit board (PCB) in a surface mount SOT-23 package. Different sensitivi.

TMAG5123-Q1 Datasheet (1.69 MB)

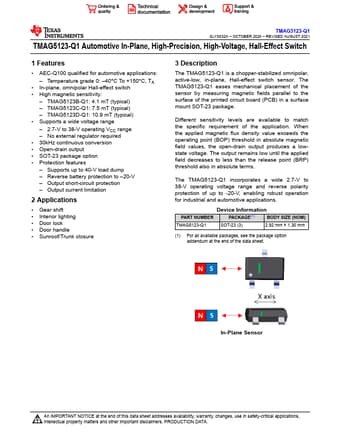

TMAG5123-Q1 Datasheet Preview — Preview of TMAG5123-Q1 PDF

Datasheet Details

Part number:

TMAG5123-Q1

Manufacturer:

Texas Instruments ↗

File Size:

1.69 MB

Description:

Automotive hall-effect switch.
TMAG5123-Q1 SLYS032A OCTOBER 2020 REVISED AUGUST 2021 TMAG5123-Q1 Automotive In-Plane, High-Precision, High-Voltage, Hall-Effect S.
