TMS416400A Datasheet - Texas Instruments

TMS416400A DYNAMIC RANDOM-ACCESS MEMORIES

This data sheet is applicable to all TMS41x400As symbolized by Revision “B”, Revision “E” and subsequent revisions as described in the device symbolization section. D Organization . . . 4 194304 × 4 D Single 5-V Power Supply (±10% Tolerance) D 2 048-Cycle Refresh in 32 ms for TMS417400A D 4 096-Cycle Refresh in 64 ms for TMS416400A D Performance Ranges: ACCESS ACCESS ACCESS READ OR TIME TIME TIME WRITE tRAC MAX tCAC MAX tAA CYCLE MAX MIN ’41x400A-50 50 ns 13 ns 25 ns 90 ns ’41x400A-60 6.

TMS416400A-etcTI.pdf

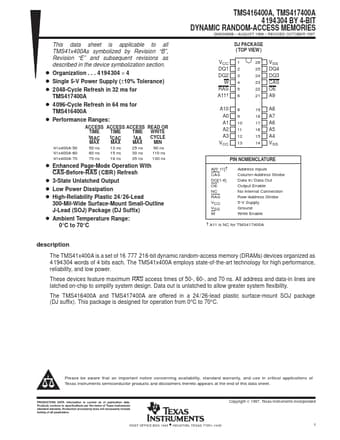

Preview of TMS416400A PDF
TMS416400A Datasheet Preview Page 2 TMS416400A Datasheet Preview Page 3

Datasheet Details

Part number:

TMS416400A

Manufacturer:

Texas Instruments ↗

File Size:

378.57 KB

Description:

Dynamic random-access memories.
