TMS416100P, TMS416100 Datasheet - Texas Instruments

TMS416100P DYNAMIC RANDOM-ACCESS MEMORIES

This data sheet is applicable to all TMS416100/Ps symbolized with Revision “B” and subsequent revisions as described on page 24. Organization . . . 16 777 216 × 1 Single 5-V Power Supply (±10% Tolerance) Performance Ranges: ’416100- 60 ’416100- 70 ACCESS ACCESS ACCESS READ TIME TIME TIME OR WRITE tRAC tCAC tAA CYCLE (MAX ) (MAX ) (MAX ) (MIN) 60 ns 15 ns 30 ns 110 ns 70 ns 18 ns 35 ns 130 ns ’416100- 80 80 ns 20 ns 40 ns 150 ns Enhanced Page Mod.

TMS416100-etcTI.pdf

This datasheet PDF includes multiple part numbers: TMS416100P, TMS416100. Please refer to the document for exact specifications by model.

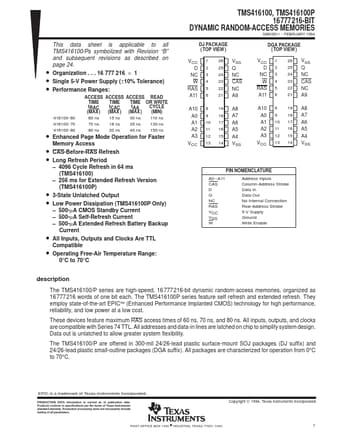

TMS416100P Datasheet Preview Page 2 TMS416100P Datasheet Preview Page 3

Datasheet Details

Part number:

TMS416100P, TMS416100

Manufacturer:

Texas Instruments ↗

File Size:

354.50 KB

Description:

Dynamic random-access memories.

Note:

This datasheet PDF includes multiple part numbers: TMS416100P, TMS416100.
Please refer to the document for exact specifications by model.
