TMUX1133

3 or 4-Channel Precision Switches

TMUX1133 Features

* Single supply range: 1.08V to 5.5V

* Dual supply range: ±2.75V

* Low leakage current: 3pA

* Low charge injection: -1pC

* Low on-resistance: 2Ω

* -40°C to +125°C operating temperature

* 1.8V logic compatible

* Fail-safe logic

TMUX1133 General Description

The TMUX113x devices are precision complementary metal-oxide semiconductor (CMOS) switches with multiple channels. The TMUX1133 is a 2:1, singlepole double-throw (SPDT), configuration with three independently controlled channels and an EN pin to enable or disable all three switches. The TMUX1134 co.

TMUX1133 Datasheet (1.49 MB)

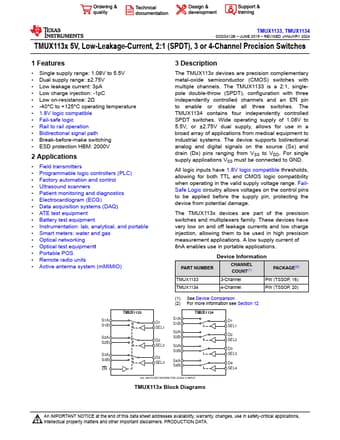

Preview of TMUX1133 PDF

Datasheet Details

Part number:

TMUX1133

Manufacturer:

Texas Instruments ↗

File Size:

1.49 MB

Description:

3 or 4-channel precision switches.
TMUX1133, TMUX1134 SCDS412B

* JUNE 2019

* REVISED JANUARY 2024 TMUX113x 5V, Low-Leakage-Current, 2:1 (SPDT), 3 or 4-Channel Precision .
