TMUX1134, TMUX1133 - 3 or 4-Channel Precision Switches

Texas Instruments

📥 Download Datasheet

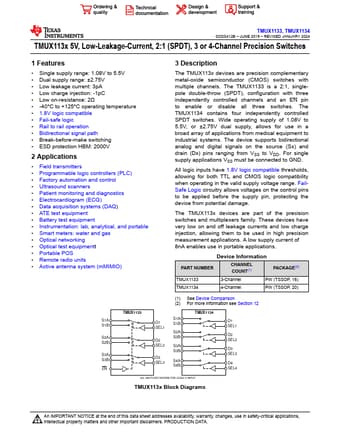

TMUX1134 Datasheet Preview — This datasheet PDF includes multiple part numbers: TMUX1134, TMUX1133. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	TMUX1134, TMUX1133
Manufacturer	Texas Instruments ↗
File Size	1.49 MB
Description	3 or 4-Channel Precision Switches
Datasheet	TMUX1133-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: TMUX1134, TMUX1133. Please refer to the document for exact specifications by model.

TMUX1134 Product details

Description

The TMUX113x devices are precision complementary metal-oxide semiconductor (CMOS) switches with multiple channels.

Features

Single supply range: 1.08V to 5.5V.
Dual supply range: ±2.75V.
Low leakage current: 3pA.
Low charge injection: -1pC.
Low on-resistance: 2Ω.
-40°C to +125°C operating temperature.
1.8V logic compatible.
Fail-safe logic.
Rail to rail operation.
Bidirectional signal path.
Break-before-make switching.
ESD protection HBM: 2000V 2.
