TMUX1136 Datasheet, Switch, Texas Instruments

TMUX1136 Features

  • Switch
  • 1 Wide supply range: 1.08 V to 5.5 V
  • Low leakage current: 3 pA
  • Low on-resistance: 2 Ω
  • Low charge injection:
      –6 pC
  • -40°C

PDF File Details

Part number:

TMUX1136

Manufacturer:

Texas Instruments ↗

File Size:

1.51MB

Download:

📄 Datasheet

Description:

2-channel precision analog switch. The TMUX1136 is a complementary metal-oxide semiconductor (CMOS) single-pole double-throw (2:1) switch with two independently control

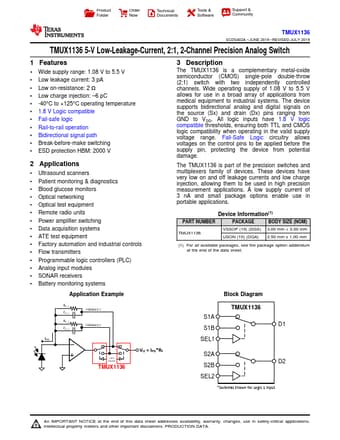

Datasheet Preview: TMUX1136 📥 Download PDF (1.51MB)
Page 2 of TMUX1136 Page 3 of TMUX1136

TMUX1136 Application

  • Applications
  • Ultrasound scanners
  • Patient monitoring & diagnostics
  • Blood glucose monitors
  • Optical networking
