TMUX6111 - precision quad SPST switches

Texas Instruments

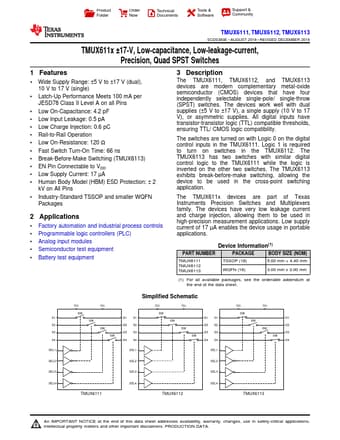

TMUX6111 Datasheet Preview — Preview of TMUX6111 PDF

Datasheet Details

Part number	TMUX6111
Manufacturer	Texas Instruments ↗
File Size	1.42 MB
Description	precision quad SPST switches
Datasheet	TMUX6111-etcTI.pdf

TMUX6111 Product details

Description

The TMUX6111, TMUX6112, and TMUX6113 devices are modern complementary metal-oxide semiconductor (CMOS) devices that have four independently selectable single-pole/ single-throw (SPST) switches.

Features

1 Wide Supply Range: ±5 V to ±17 V (dual), 10 V to 17 V (single).
Latch-Up Performance Meets 100 mA per JESD78 Class II Level A on all Pins.
Low On-Capacitance: 4.2 pF.
Low Input Leakage: 0.5 pA.
Low Charge Injection: 0.6 pC.
Rail-to-Rail Operation.
Low On-Resistance: 120 Ω.
Fast Switch Turn-On Time: 66 ns.
Break-Before-Make Switching (TMUX6113).
EN Pin Connectable to VDD.
Low Supply Current: 17 µA.
