TMUX6212

4-Channel Precision Switches

TMUX6212 Features

* Dual supply range: ±4.5V to ±18V

* Single supply range: 4.5V to 36V

* Low on-resistance: 2Ω

* High current support: 330mA (maximum) (WQFN)

* High current support: 220mA (maximum) (TSSOP)

* 40°C to +125°C operating temperature

* 1.8V

TMUX6212 General Description

The TMUX6211, TMUX6212, and TMUX6213 are complementary metal-oxide semiconductor (CMOS) switches with four independently selectable 1:1, single-pole, single-throw (SPST) switch channels. The devices work with a single supply (4.5V to 36V), dual supplies (±4.5V to ±18V), or asymmetric supplies (such.

TMUX6212 Datasheet (2.72 MB)

Preview of TMUX6212 PDF

Datasheet Details

Part number:

TMUX6212

Manufacturer:

Texas Instruments ↗

File Size:

2.72 MB

Description:

4-channel precision switches.
TMUX6211, TMUX6212, TMUX6213 SCDS431D

* OCTOBER 2020

* REVISED JULY 2024 TMUX621x 36V, Low-RON, 1:1 (SPST), 4-Channel Precision Switch.

📁 Related Datasheet

TMUX6211 4-Channel Precision Switches (Texas Instruments)

TMUX6213 4-Channel Precision Switches (Texas Instruments)

TMUX6104 4:1 Analog Multiplexer (Texas Instruments)

TMUX6111 precision quad SPST switches (Texas Instruments)

TMUX6112 precision quad SPST switches (Texas Instruments)

TMUX6113 precision quad SPST switches (Texas Instruments)

TMUX03155 TMUX03155 STS-3/STM-1 (AU-4) Multiplexer/Demultiplexer (Agere Systems)

TMUX03155 TMUX03155 STS-3/STM-1 (AU-4) Multiplexer/Demultiplexer (Agere Systems)

TMUX03155 TMUX03155 STS-3/STM-1 (AU-4) Multiplexer/Demultiplexer (Agere Systems)

TMUX1072 2-Channel 2:1 Analog Multiplexer (Texas Instruments)

TAGS

TMUX6212 4-Channel Precision Switches Texas Instruments

Image Gallery

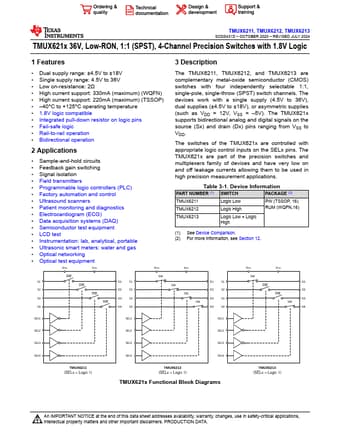

TMUX6212 Datasheet Preview Page 2 TMUX6212 Datasheet Preview Page 3
