TMUX6211 - 4-Channel Precision Switches

Texas Instruments

TMUX6211 Datasheet Preview — Preview of TMUX6211 PDF

Datasheet Details

Part number	TMUX6211
Manufacturer	Texas Instruments ↗
File Size	2.72 MB
Description	4-Channel Precision Switches
Datasheet	TMUX6211-etcTI.pdf

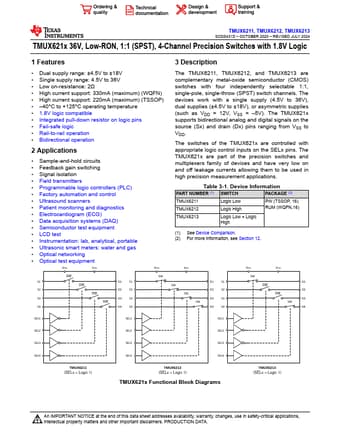

TMUX6211 Product details

Description

The TMUX6211, TMUX6212, and TMUX6213 are complementary metal-oxide semiconductor (CMOS) switches with four independently selectable 1:1, single-pole, single-throw (SPST) switch channels. 5V).

Features

Dual supply range: ±4.5V to ±18V.
Single supply range: 4.5V to 36V.
Low on-resistance: 2Ω.
High current support: 330mA (maximum) (WQFN).
High current support: 220mA (maximum) (TSSOP).
40°C to +125°C operating temperature.
1.8V logic compatible.
Integrated pull-down resistor on logic pins.
Fail-safe logic.
Rail-to-rail operation.
Bidirectional operation 2.
