TPA2010D1 - 2.5-W Mono Filter-Free Class-D Audio Power Amplifier

Texas Instruments

📥 Download Datasheet

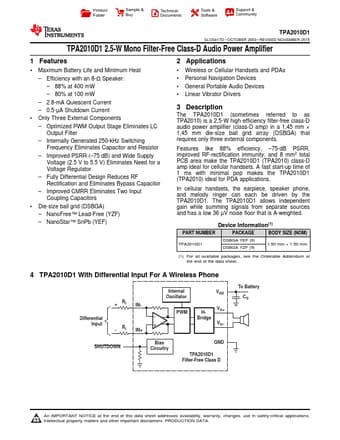

TPA2010D1 Datasheet Preview — Preview of TPA2010D1 PDF

Datasheet Details

Part number	TPA2010D1
Manufacturer	Texas Instruments
File Size	1.70 MB
Description	2.5-W Mono Filter-Free Class-D Audio Power Amplifier
Datasheet	TPA2010D1-etcTI.pdf

TPA2010D1 Product details

Description

The TPA2010D1 (sometimes referred to as TPA2010) is a 2.5-W high efficiency filter-free class-D audio power amplifier (class-D amp) in a 1,45 mm × 1,45 mm die-size ball grid array (DSBGA) that requires only three external components.

Features

1 Maximum Battery Life and Minimum Heat.
Efficiency with an 8-Ω Speaker:.
88% at 400 mW.
80% at 100 mW.
2.8-mA Quiescent Current.
0.5-µA Shutdown Current.
Only Three External Components.
Optimized PWM Output Stage Eliminates LC Output Filter.
Internally Generated 250-kHz Switching Frequency Eliminates Capacitor and Resistor.
Improved PSRR (.
75 dB) and Wide Supply Voltage (2.5 V to 5.5 V) Eliminates.
