TPA2013D1 2.7-W Constant Output Power Class-D Audio Amplifier

TPA2013D1 Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community TPA2013D1 SLOS520A * AUGUST 2007 * REVISED M.
The TPA2013D1 device is a high efficiency Class-D audio power amplifier with an integrated boost converter.

TPA2013D1 Features

* 1 High Efficiency Integrated Boost Converter (Over 90% Efficiency)
* 2.2-W into an 8-Ω Load from a 3.6-V Supply
* 2.7-W into an 4-Ω Load from a 3.6-V Supply
* Operates from 1.8 V to 5.5 V
* Efficient Class-D Prolongs Battery Life
* Independent Shutdow

TPA2013D1 Applications

* Cell Phones
* PDA
* GPS
* Portable Electronics Device Information(1) PART NUMBER PACKAGE BODY SIZE (NOM) TPA2013D1 VQFN (20) DSBGA (16) 4.00 mm × 4.00 mm 2.275 mm × 2.275 mm (1) For all available packages, see the orderable addendum at the end of the data sh

📥 Download Datasheet

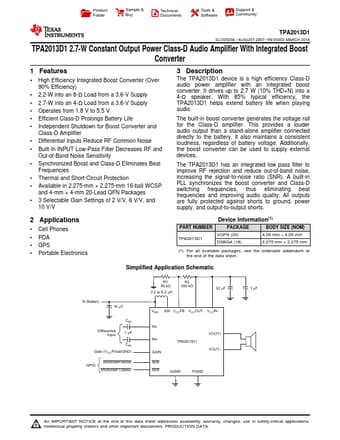

Preview of TPA2013D1 PDF
