TPA2012D2 2.1-W/Channel Stereo Filter-Free Class-D Audio Power Amplifier

TPA2012D2 Description

Product Folder Order Now Technical Documents Tools & Software Support & Community Reference Design TPA2012D2 SLOS438F * DECEMBER 2004 The TPA2012D2 is a stereo, filter-free, Class-D audio amplifier (Class-D amp) available in a DSBGA or WQFN package.

TPA2012D2 Features

* 1 Output Power By Package:
* WQFN:
* 2.1 W/Ch Into 4 Ω at 5 V
* 1.4 W/Ch Into 8 Ω at 5 V
* 720 mW/Ch Into 8 Ω at 3.6 V
* DSBGA:
* 1.2 W/Ch Into 4 Ω at 5 V (Thermally Limited)
* 1.3 W/Ch Into 8 Ω at 5 V
* 720 mW/Ch Into 8 Ω at 3

TPA2012D2 Applications

* Wireless or Cellular Handsets and PDAs
* Portable DVD Players
* Notebook PCs
* Portable Radios
* Portable Gaming
* Educational Toys
* USB Speakers Simplified Application Schematic Copyright © 2016, Texas Instruments Incorporated 1 An IMPOR

📥 Download Datasheet

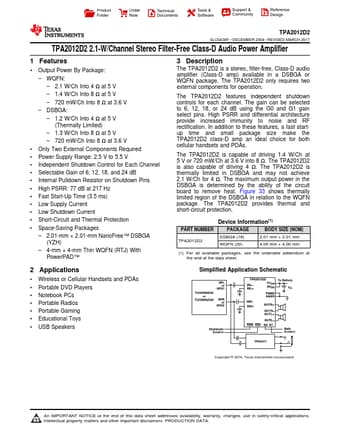

Preview of TPA2012D2 PDF
