TPA2033D1 2.75-W FIXED GAIN MONO FILTER-FREE CLASS-D AUDIO POWER AMPLIFIER

The TPA2032D1 (2V/V gain), TPA2033D1 (3V/V gain), and TPA2034D1 (4V/V gain) are 2.75-W high efficiency filter-free class-D audio power amplifiers, each in an approximately 1.5-mm × 1.5-mm wafer chip scale package (WCSP) that requires only one external component. The pinout is the same as the TPA2010.

TPA2033D1 Features

* Maximize Battery Life and Minimize Heat

* 0.5-µA Shutdown Current

* 3.0-mA Quiescent Current

* High Efficiency Class-D

* 88% at 400mW at 8Ω

* 80% at 100mW at 8Ω

* Three Fixed Gain Versions

* TPA2032D1 has a gain of 2 V/V (6dB)

TPA2032D1-etcTI.pdf

This datasheet PDF includes multiple part numbers: TPA2033D1, TPA2032D1. Please refer to the document for exact specifications by model.

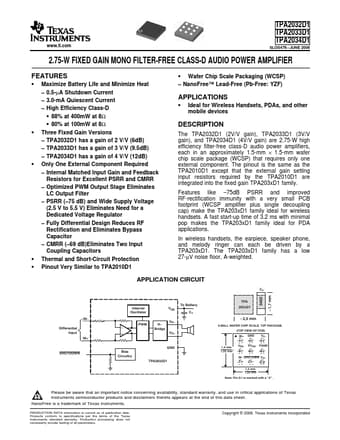

TPA2033D1 Datasheet Preview Page 2 TPA2033D1 Datasheet Preview Page 3

Datasheet Details

Part number:

TPA2033D1, TPA2032D1

Manufacturer:

Texas Instruments ↗

File Size:

1.47 MB

Description:

2.75-w fixed gain mono filter-free class-d audio power amplifier.

Note:

This datasheet PDF includes multiple part numbers: TPA2033D1, TPA2032D1.
Please refer to the document for exact specifications by model.
