TPA2036D1 - 2.5-W MONO CLASS-D AUDIO AMPLIFIER

Name: TPA2036D1
SKU: TPA2036D1-1419876

Texas Instruments

📥 Download Datasheet

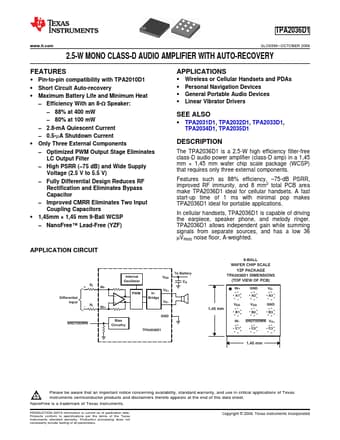

TPA2036D1 Datasheet Preview — Preview of TPA2036D1 PDF

Datasheet Details

Part number	TPA2036D1
Manufacturer	Texas Instruments
File Size	1.16 MB
Description	2.5-W MONO CLASS-D AUDIO AMPLIFIER
Datasheet	TPA2036D1-etcTI.pdf

TPA2036D1 Product details

Description

The TPA2036D1 is a 2.5-W high efficiency filter-free class-D audio power amplifier (class-D amp) in a 1,45 mm × 1,45 mm wafer chip scale package (WCSP) that requires only three external components.

Features

1.
2 Pin-to-pin compatibility with TPA2010D1.
Short Circuit Auto-recovery.
Maximum Battery Life and Minimum Heat.
Efficiency With an 8-Ω Speaker:.
88% at 400 mW.
80% at 100 mW.
2.8-mA Quiescent Current.
0.5-µA Shutdown Current.
Only Three External Components.
Optimized PWM Output Stage Eliminates LC Output Filter.
High PSRR (.
75 dB) and Wide Supply Voltage (2.5 V to 5.5 V).
Fully Di.
