TPA2034D1

2.75-W FIXED GAIN MONO FILTER-FREE CLASS-D AUDIO POWER AMPLIFIER

TPA2034D1 Features

* Maximize Battery Life and Minimize Heat

* 0.5-µA Shutdown Current

* 3.0-mA Quiescent Current

* High Efficiency Class-D

* 88% at 400mW at 8Ω

* 80% at 100mW at 8Ω

* Three Fixed Gain Versions

* TPA2032D1 has a gain of 2 V/V (6dB)

TPA2034D1 General Description

The TPA2032D1 (2V/V gain), TPA2033D1 (3V/V gain), and TPA2034D1 (4V/V gain) are 2.75-W high efficiency filter-free class-D audio power amplifiers, each in an approximately 1.5-mm × 1.5-mm wafer chip scale package (WCSP) that requires only one external component. The pinout is the same as the TPA2010.

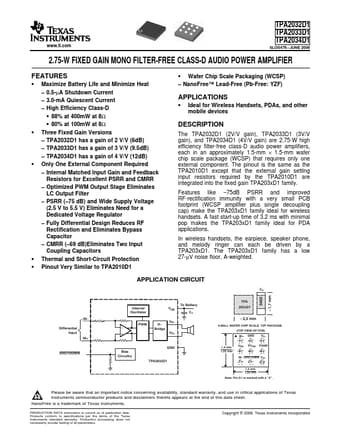

TPA2034D1 Datasheet (1.47 MB)
