TPA2100P1 - Mono Class-D Audio Amplifier

Product Overview

Texas Instruments

Datasheet Details

Part number	TPA2100P1
Manufacturer	Texas Instruments
File Size	959.05 KB
Description	Mono Class-D Audio Amplifier
Datasheet	TPA2100P1 Datasheet

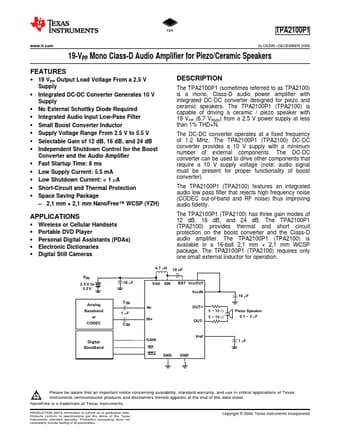

Additional preview pages of the TPA2100P1 datasheet.

Product details

Description

The TPA2100P1 (sometimes referred to as TPA2100) is a mono, Class-D audio power amplifier with integrated DC-DC converter designed for piezo and ceramic speakers.

Features

1.
2 19 VPP Output Load Voltage From a 2.5 V Supply.
Integrated DC-DC Converter Generates 10 V Supply.
No External Schottky Diode Required.
Integrated Audio Input Low-Pass Filter.
Small Boost Converter Inductor.
Supply Voltage Range From 2.5 V to 5.5 V.
Selectable Gain of 12 dB, 16 dB, and 24 dB.
Independent Shutdown Control for the Boost Converter and the Audio Amplifier.
Fast Startup Time: 8 ms.
Low Supply.
