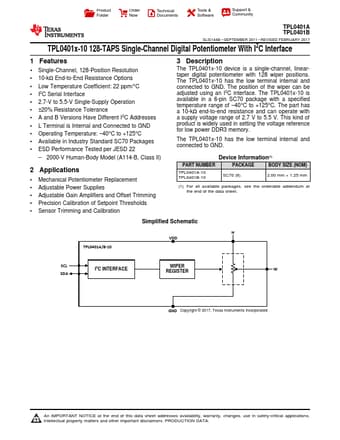

TPL0401A-10, TPL0401A Datasheet - Texas Instruments

TPL0401A-10 128-TAPS Single-Channel Digital Potentiometer

The TPL0401x-10 device is a single-channel, lineartaper digital potentiometer with 128 wiper positions. The TPL0401x-10 has the low terminal internal and connected to GND. The position of the wiper can be adjusted using an I2C interface. The TPL0401x-10 is available in a 6-pin SC70 package with a sp.

TPL0401A-10 Features

* 1 Single-Channel, 128-Position Resolution

* 10-kΩ End-to-End Resistance Options

* Low Temperature Coefficient: 22 ppm/°C

* I2C Serial Interface

* 2.7-V to 5.5-V Single-Supply Operation

* ±20% Resistance Tolerance

* A and B Versions Have Differ
