TPL0401B, TPL0401A 128-TAPS Single-Channel Digital Potentiometer

TPL0401B Description

Product Folder Order Now Technical Documents Tools & Software Support & Community TPL0401A TPL0401B SLIS144B * SEPTEMBER 2011 * R.
The TPL0401x-10 device is a single-channel, lineartaper digital potentiometer with 128 wiper positions.

TPL0401B Features

* 1 Single-Channel, 128-Position Resolution
* 10-kΩ End-to-End Resistance Options
* Low Temperature Coefficient: 22 ppm/°C
* I2C Serial Interface
* 2.7-V to 5.5-V Single-Supply Operation
* ±20% Resistance Tolerance
* A and B Versions Have Differ

TPL0401B Applications

* Mechanical Potentiometer Replacement
* Adjustable Power Supplies
* Adjustable Gain Amplifiers and Offset Trimming
* Precision Calibration of Setpoint Thresholds

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TPL0401B, TPL0401A. Please refer to the document for exact specifications by model.

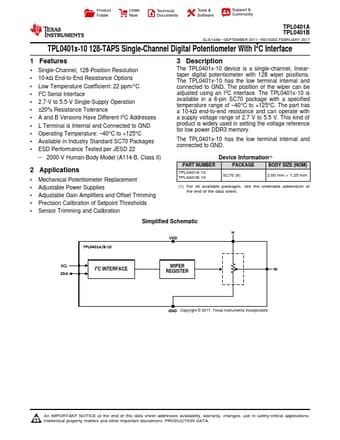

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPL0401B, TPL0401A
Manufacturer
Texas Instruments ↗
File Size
1.20 MB
Datasheet
TPL0401A-etcTI.pdf
Description
128-TAPS Single-Channel Digital Potentiometer
Note
This datasheet PDF includes multiple part numbers: TPL0401B, TPL0401A.
Please refer to the document for exact specifications by model.
