TPL0401A-10-Q1

128-TAPS Single-Channel Digital Potentiometer

TPL0401A-10-Q1 Features

* 1 Single-Channel, 128-Position Resolution

* 10-kΩ End-to-End Resistance Options

* Low Temperature Coefficient: 22 ppm/°C

* I2C Serial Interface

* 2.7-V to 5.5-V Single-Supply Operation

* ±20% Resistance Tolerance

* A and B Versions Have Differ

TPL0401A-10-Q1 General Description

The TPL0401x-10-Q1 device is a single-channel, linear-taper digital potentiometer with 128 wiper positions. The TPL0401x-10-Q1 has the low terminal internal and connected to GND. The position of the wiper can be adjusted using an I2C interface. The TPL0401x-10-Q1 is available in a 6-pin SC70 package.

TPL0401A-10-Q1 Datasheet (1.20 MB)

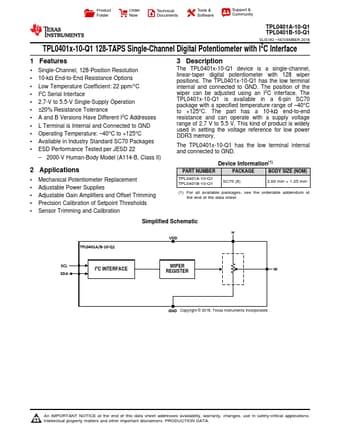

Preview of TPL0401A-10-Q1 PDF

Datasheet Details

Part number:

TPL0401A-10-Q1

Manufacturer:

Texas Instruments ↗

File Size:

1.20 MB

Description:

128-taps single-channel digital potentiometer.
Product Folder Order Now Technical Documents Tools & Software Support & Community TPL0401A-10-Q1 TPL0401B-10-Q1 SLIS182

* NOVEMBER 2016 T.
