TPL5110

Nano-Power System Timer

TPL5110 Features

* 1 Supply Voltage From 1.8 V to 5.5 V

* Current Consumption at 2.5 V and 35 nA (Typical)

* Selectable Time Intervals: 100 ms to 7200 s

* Timer Accuracy: 1% (Typical)

* Resistor Selectable Time Interval

* Manual MOSFET Power On

* One-Shot Featur

TPL5110 General Description

The TPL5110 Nano Timer is a low power timer with an integrated MOSFET driver designed for power gating in duty cycled or battery-powered applications. Consuming only 35 nA, the TPL5110 can enable the power supply line and drastically reduce the overall system stand by current during the sleep time. .

TPL5110 Datasheet (0.99 MB)

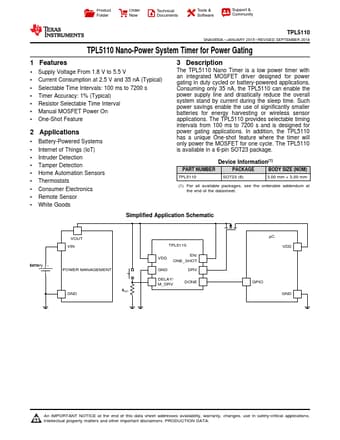

Preview of TPL5110 PDF
