TPL51200 - 3-A Sink and Source DDR Termination Regulator

3PEAK

TPL51200 Datasheet Preview — Preview of TPL51200 PDF

Datasheet Details

Part number	TPL51200
Manufacturer	3PEAK
File Size	894.70 KB
Description	3-A Sink and Source DDR Termination Regulator
Datasheet	TPL51200-3PEAK.pdf

TPL51200 Product details

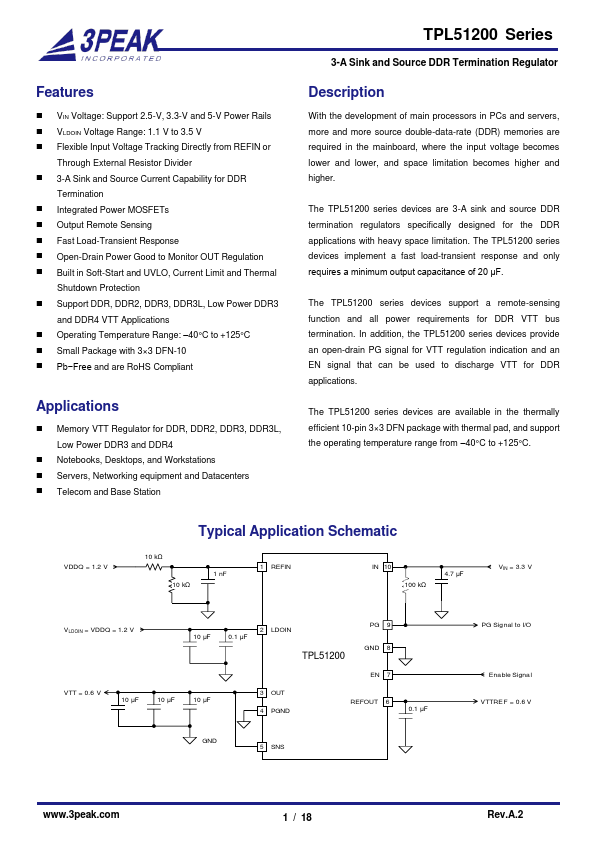

Description

With the development of main processors in PCs and servers, more and more source double-data-rate (DDR) memories are required in the mainboard, where the input voltage becomes lower and lower, and space limitation becomes higher and higher.

Features

VIN Voltage: Support 2.5-V, 3.3-V and 5-V Power Rails.
VLDOIN Voltage Range: 1.1 V to 3.5 V.
Flexible Input Voltage Tracking Directly from REFIN or Through External Resistor Divider.
3-A Sink and Source Current Capability for DDR Termination.
Integrated Power MOSFETs.
Output Remote Sensing.
Fast Load-Transient Response.
Open-Drain Power Good to Monitor OUT Regulation.
Built in Soft-Start and UVLO, Current Limit and Thermal Shutdown Protection.
S.
