TPL51206 2-A Sink and Source DDR Termination Regulator

With the development of main processors in PCs and servers, more and more source double-data-rate (DDR) memories are required in the mainboard, where the input voltage becomes lower and lower, and space limitation becomes higher and higher. The TPL51206 series devices are 2-A sink and source DDR ter.

TPL51206 Features

* VIN Voltage Range: 3 V to 5.5 V

* VLDOIN Voltage Range: 1 V to 3.5 V

* VOUT Minimum Output Voltage: 0.5V

* Input Voltage Tracking from ½×REFIN

* 2-A Sink and Source Current Capability for DDR Termination

* Integrated Power MOSFETs

* Output Remote Sensing

* Fast Load

TPL51206 Datasheet (815.29 KB)

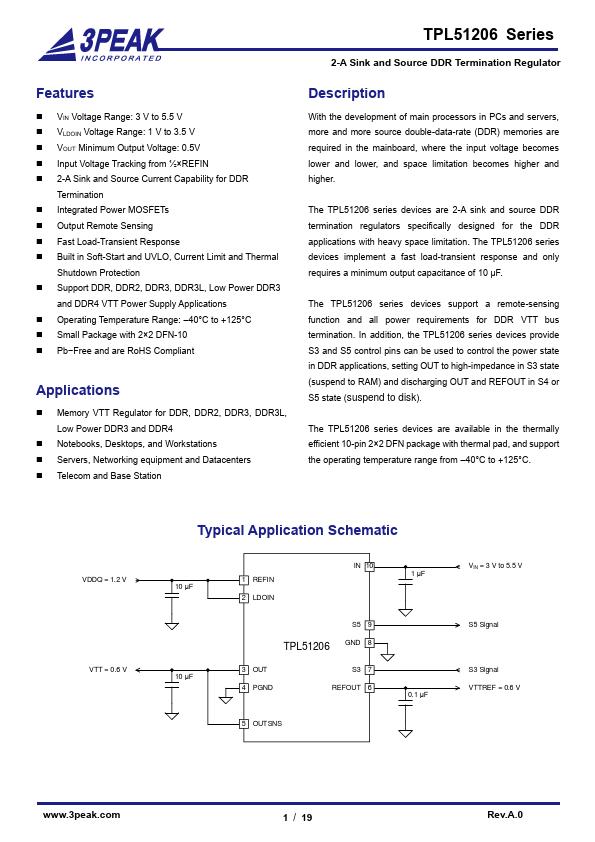

TPL51206 Datasheet Preview — Preview of TPL51206 PDF

Datasheet Details

Part number:

TPL51206

Manufacturer:

3PEAK

File Size:

815.29 KB

Description:

2-a sink and source ddr termination regulator.
