TPL0202

256-Taps Dual Channel Digital Potentiometer

Texas Instruments

TPL0202 Features

* 1 Two Potentiometers With 256-Position Resolution

* Non-Volatile Memory Stores Wiper Settings

* 10-kΩ End-to-End Resistance (TPL0202-10)

* Fast Power-Up Response Time:

TPL0202 General Description

The TPL0202 has two linear-taper digital potentiometers (DPOTs) with 256 wiper positions. Each potentiometer can be used as a three-terminal potentiometer or as a two-terminal rheostat. The TPL0202-10 has an end-to-end resistance of 10 kΩ. This DPOT can be used as a mechanical potentiometer replacem.

TPL0202 Datasheet (1.70 MB)

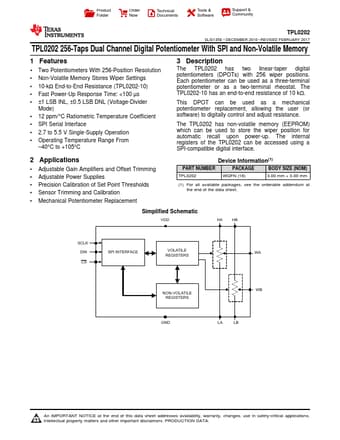

TPL0202 Datasheet Preview — Preview of TPL0202 PDF

Datasheet Details

Part number:

TPL0202

Manufacturer:

Texas Instruments ↗

File Size:

1.70 MB

Description:

256-taps dual channel digital potentiometer.
Product Folder Order Now Technical Documents Tools & Software Support & Community TPL0202 SLIS135E

* DECEMBER 2010

* REVISED FEBR.
