TPS3103 - Ultralow Supply-Current Voltage Monitor

Product Overview

Texas Instruments

Datasheet Details

Part number	TPS3103
Manufacturer	Texas Instruments
File Size	1.09 MB
Description	Ultralow Supply-Current Voltage Monitor
Datasheet	TPS3103 Datasheet

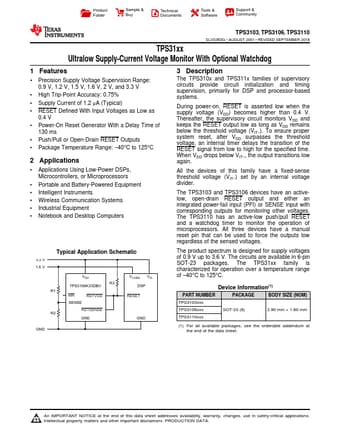

Additional preview pages of the TPS3103 datasheet.

Product details

Description

The TPS310x and TPS311x families of supervisory circuits provide circuit initialization and timing supervision, primarily for DSP and processor-based systems. ).

Features

1 Precision Supply Voltage Supervision Range: 0.9 V, 1.2 V, 1.5 V, 1.6 V, 2 V, and 3.3 V.
High Trip-Point Accuracy: 0.75%.
Supply Current of 1.2 μA (Typical).
RESET Defined With Input Voltages as Low as 0.4 V.
Power-On Reset Generator With a Delay Time of 130 ms.
Push/Pull or Open-Drain RESET Outputs.
Package Temperature Range:.
40°C to 125°C 2.
