TPS3103-EP

Ultra-Low Supply-Current/Supply-Voltage Supervisory Circuits

TPS3103-EP Features

* Controlled Baseline

* One Assembly Site

* One Test Site

* One Fabrication Site

* Extended Temperature Performance of

* 55°C to 125°C

* Enhanced Diminishing Manufacturing Sources (DMS) Support

* Enhanced Product-Change Notification

TPS3103-EP General Description

The TPS310x and TPS311x families of supervisory circuits provide circuit initialization and timing supervision, primarily for DSP and processor-based systems. During power-on, RESET is asserted when the supply voltage (VDD) becomes higher than 0.4 V. Thereafter, the supervisory circuit monitors VDD .

TPS3103-EP Datasheet (565.00 KB)

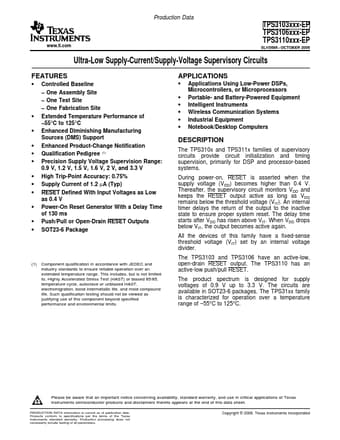

Preview of TPS3103-EP PDF

Datasheet Details

Part number:

TPS3103-EP

Manufacturer:

Texas Instruments ↗

File Size:

565.00 KB

Description:

Ultra-low supply-current/supply-voltage supervisory circuits.
www.ti.com Production Data TPS3103xxx-EP TPS3106xxx-EP TPS3110xxx-EP SLVS686

* OCTOBER 2006 Ultra-Low Supply-Current/Supply-Voltage Supervi.
