TPS51225 Step-Down Controller

TPS51225 Description

www.ti.com TPS51225, TPS51225B, TPS51225C SLUSAV0B * JANUARY 2012 * REVISED SEPTEMBER 2012 Dual Synchronous, Step-Down Controller wi.
The TPS51225/B/C is a cost-effective, dualsynchronous buck controller targeted for notebook system-power supply solutions.

TPS51225 Applications

* 2 Input Voltage Range: 5.5 V to 24 V
* Notebook Computers
* Output Voltages: 5 V and 3.3 V (Adjustable Range ±10%)
* Built-in, 100-mA, 5-V and 3.3-V LDOs
* Clock Output for Charge-Pump
* ±1% Reference Accuracy
* Adaptive On-time D-CAP™ Mode

📥 Download Datasheet

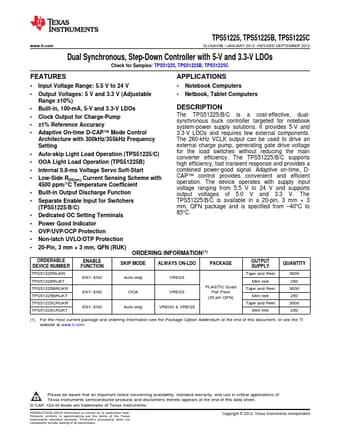

Preview of TPS51225 PDF
datasheet Preview Page 2 datasheet Preview Page 3
