TPS54540D

High Efficiency Synchronous Step-down DCDCConverter

TPS54540D Features

* Wide Input Range: 3.8V-36V

* Up to 5A Continuous Output Current

* Integrated 45mΩ High-Side and 20mΩ Low-Side

* Low Dropout Mode Operation

* Derivable Inverting Voltage Regulator

* Frequency Spread Spectrum (FSS) Modulation Power MOSFETs for EMI Reduction

* Feedback

TPS54540D General Description

The TPS54540D is 5A synchronous buck converters with wide input voltage, ranging from 3.8V to 36V, which integrates a 45mΩ high-side MOSFET and a 20mΩlow-side MOSFET. The TPS54540D , adopting the peak current mode control, supports the Pulse Skipping Modulation (PSM) with typical 25uA low quiesce.

TPS54540D Datasheet (1.14 MB)

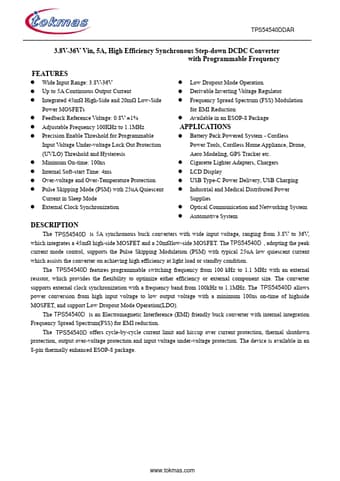

Preview of TPS54540D PDF

Datasheet Details

Part number:

TPS54540D

Manufacturer:

tokmas

File Size:

1.14 MB

Description:

High efficiency synchronous step-down dcdcconverter.
