TPS54540 Datasheet, Converter, Texas Instruments

TPS54540 Features

  • Converter
  • 1 High Efficiency at Light Loads with Pulse Skipping Eco-mode™
  • 92-mΩ High-Side MOSFET
  • 146 μA Operating Quiescent Current and 2 μA Shutdown Current

PDF File Details

Part number:

TPS54540

Manufacturer:

Texas Instruments ↗

File Size:

3.25MB

Download:

📄 Datasheet

Description:

Step down dc-dc converter. The TPS54540 is a 42 V, 5 A, step down regulator with an integrated high side MOSFET. The device survives load dump pulses up to 45V

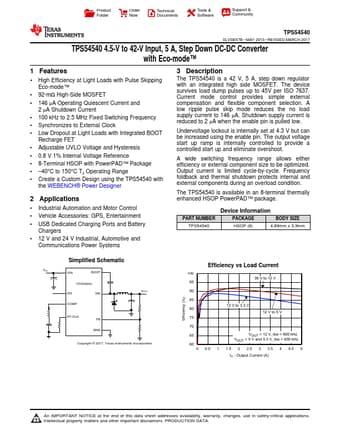

Datasheet Preview: TPS54540 📥 Download PDF (3.25MB)
Page 2 of TPS54540 Page 3 of TPS54540

TPS54540 Application

  • Applications
  • Industrial Automation and Motor Control
  • Vehicle Accessories: GPS, Entertainment
  • USB Dedicated Charging P
