TPS54521 Datasheet, Converter, Texas Instruments

TPS54521 Features

  • Converter 1
  • 2 Integrated 57mΩ / 50mΩ MOSFETs
  • Split Power Rail: 1.6V to 17V on PVIN
  • 200kHz to 900kHz Switching Frequency
  • Synchronizes to External Clock

PDF File Details

Part number:

TPS54521

Manufacturer:

Texas Instruments ↗

File Size:

1.74MB

Download:

📄 Datasheet

Description:

5a synchronous step down converter. The TPS54521 is a full featured 17V, 5A synchronous step down converter which is optimized for small designs through high efficiency

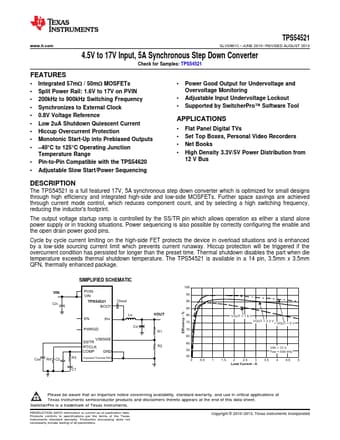

Datasheet Preview: TPS54521 📥 Download PDF (1.74MB)
Page 2 of TPS54521 Page 3 of TPS54521

TPS54521 Application

  • Applications
  • Flat Panel Digital TVs
  • Set Top Boxes, Personal Video Recorders
  • Net Books
  • High Density 3.3V/5V P
