TPS54527 - 5-A Synchronous Step-Down Converter

TPS54527 Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community TPS54527 SLVSAY5D * JULY 2011 * REVISED AUGU.
The TPS54527 is an adaptive on-time D-CAP2 mode synchronous buck converter.

TPS54527 Features

* 1 D-CAP2™ Mode Enables Fast Transient Response
* Low Output Ripple and Allows Ceramic Output Capacitor
* Wide Input Voltage Range: 4.5 V to 18 V
* Output Voltage Range: 0.76 V to 6 V
* Highly Efficient Integrated FETs Optimized for Lower Duty Cycle Applicatio

TPS54527 Applications

* 65 mΩ (High Side) and 36 mΩ (Low Side)
* High Efficiency: Less Than 10 µA at Shutdown
* High Initial Bandgap Reference Accuracy
* Adjustable Soft Start
* Prebiased Soft Start
* 650-kHz Switching Frequency
* Cycle-by-Cycle Overcurrent Limit 2 Applicati

📥 Download Datasheet

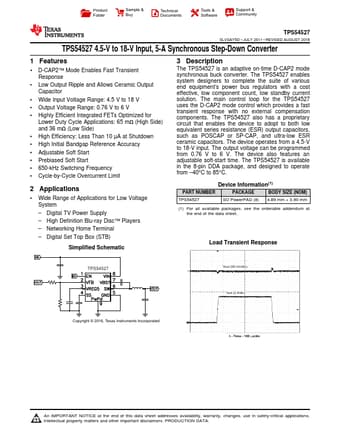

Preview of TPS54527 PDF
datasheet Preview Page 2 datasheet Preview Page 3
