TPS54525

5.5-A Synchronous Step-Down Converter

TPS54525 Features

* 1

* 23 D-CAP2™ Mode Enables Fast Transient Response

* Low Output Ripple and Allows Ceramic Output Capacitor

* Wide VIN Input Voltage Range: 4.5 V to 18 V

* Output Voltage Range: 0.76 V to 5.5 V

* Highly Efficient Integrated FET’s Optimized for Lower Duty Cycle

TPS54525 General Description

The TPS54525 is an adaptive on-time D-CAP2™ mode synchronous buck converter. The TPS54525 enables system designers to complete the suite of various end equipment’s power bus regulators with a cost effective, low component count, low standby current solution. The main control loop for the TPS54525 us.

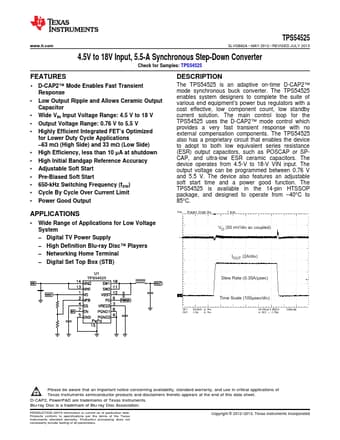

TPS54525 Datasheet (0.98 MB)

Preview of TPS54525 PDF

Datasheet Details

Part number:

TPS54525

Manufacturer:

Texas Instruments ↗

File Size:

0.98 MB

Description:

5.5-a synchronous step-down converter.
www.ti.com TPS54525 SLVSB82A

* MAY 2012

* REVISED JULY 2013 4.5V to 18V Input, 5.5-A Synchronous Step-Down Converter Check for Sampl.
