TPS54308

Synchronous 350-kHz FCCM Step-Down Converter

Texas Instruments

TPS54308 Features

* 4.5-V to 28-V wide input voltage range

* Integrated 85-mΩ and 40-mΩ MOSFETs for 3-A, continuous output current

* Low 2-μA shutdown, 300-μA quiescent current

* Internal 5-mS soft start

* Fixed 350-kHz switching frequency

* Peak current mode control

TPS54308 General Description

The TPS54308 is a 4.5-V to 28-V input voltage range, 3-A synchronous buck converter. The device includes two integrated switching FETs, internal loop compensation, and 5-ms internal soft start to reduce component count. By integrating the MOSFETs and employing the SOT-23 package, the TPS54308 achi.

TPS54308 Datasheet (2.87 MB)

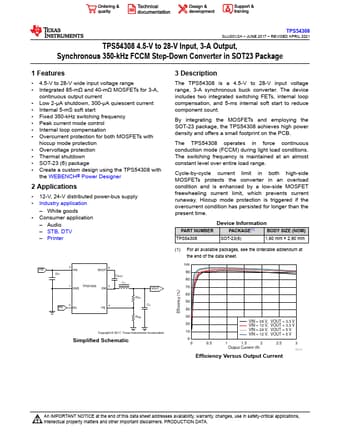

TPS54308 Datasheet Preview — Preview of TPS54308 PDF

Datasheet Details

Part number:

TPS54308

Manufacturer:

Texas Instruments ↗

File Size:

2.87 MB

Description:

Synchronous 350-khz fccm step-down converter.
www.ti.com SLUSCV2A

* JUNE 2017

* REVISEDTTAPPPSSR55IL442330002881 SLUSCV2A

* JUNE 2017

* REVISED APRIL 2021 TPS5430.
