TPS54355-EP, TPS54352-EP - 3-A Output Synchronous PWM Switcher

Name: TPS54355-EP
SKU: TPS54355-EP-1480470

Texas Instruments

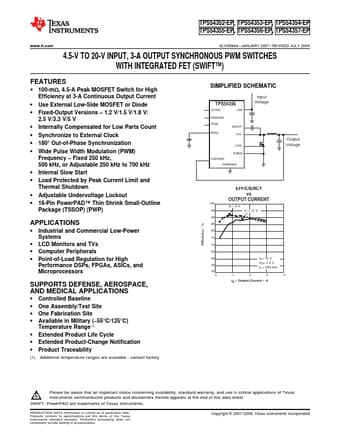

📥 Download Datasheet

TPS54355-EP Datasheet Preview — This datasheet PDF includes multiple part numbers: TPS54355-EP, TPS54352-EP. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	TPS54355-EP, TPS54352-EP
Manufacturer	Texas Instruments
File Size	1.56 MB
Description	3-A Output Synchronous PWM Switcher
Datasheet	TPS54352-EP-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: TPS54355-EP, TPS54352-EP. Please refer to the document for exact specifications by model.

TPS54355-EP Product details

Description

ORDERING INFORMATION The TPS5435x is a medium-output-current synchronous buck PWM converter with an integrated high-side MOSFET and a gate driver for an optional low-side external MOSFET.

Features

1.
2 100-mΩ, 4.5-A Peak MOSFET Switch for High Efficiency at 3-A Continuous Output Current.
Use External Low-Side MOSFET or Diode.
Fixed-Output Versions.
1.2 V/1.5 V/1.8 V/ 2.5 V/3.3 V/5 V.
Internally Compensated for Low Parts Count.
Synchronize to External Clock.
180° Out-of-Phase Synchronization.
Wide Pulse Width Modulation (PWM) Frequency.
Fixed 250 kHz, 500 kHz, or Adjustable 250 kHz to 700 kHz.
Internal.
