TPS566235 - 6-A Synchronous Step-Down Converter

Texas Instruments

📥 Download Datasheet

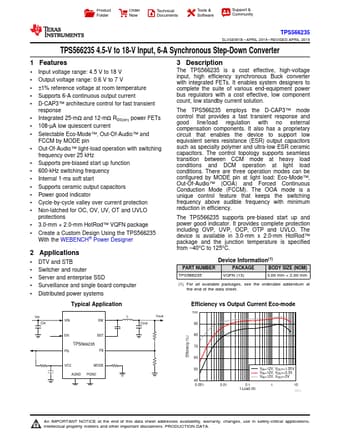

TPS566235 Datasheet Preview — Preview of TPS566235 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	TPS566235
Manufacturer	Texas Instruments ↗
File Size	1.47 MB
Description	6-A Synchronous Step-Down Converter
Datasheet	TPS566235-etcTI.pdf

TPS566235 Product details

Description

The TPS566235 is a cost effective, high-voltage input, high efficiency synchronous Buck converter with integrated FETs.

Features

1 Input voltage range: 4.5 V to 18 V.
Output voltage range: 0.6 V to 7 V.
±1% reference voltage at room temperature.
Supports 6-A continuous output current.
D-CAP3™ architecture control for fast transient response.
Integrated 25-mΩ and 12-mΩ RDS(on) power FETs.
108-µA low quiescent current.
Selectable Eco-Mode™, Out-Of-Audio™ and FCCM by MODE pin.
Out-Of-Audio™ light-load operation with switching frequency over 25 k.
