TPS61197 - Single-String White-LED Driver

Texas Instruments

📥 Download Datasheet

TPS61197 Datasheet Preview — Preview of TPS61197 PDF

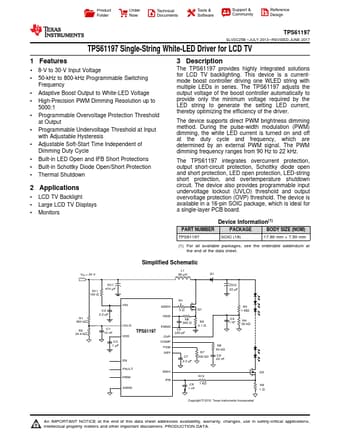

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: TPS61197
Manufacturer: Texas Instruments ↗
File Size: 1.66 MB
Datasheet: TPS61197-etcTI.pdf
Description: Single-String White-LED Driver

TPS61197 Product details

Description

The TPS61197 provides highly integrated solutions for LCD TV backlighting.

Features

1 8-V to 30-V Input Voltage.
50-kHz to 800-kHz Programmable Switching Frequency.
Adaptive Boost Output to White-LED Voltage.
High-Precision PWM Dimming Resolution up to 5000:1.
Programmable Overvoltage Protection Threshold at Output.
Programmable Undervoltage Threshold at Input with Adjustable Hysteresis.
Adjustable Soft-Start Time Independent of Dimming Duty Cycle.
Built-in LED Open and IFB Short Protections.
Built.
