TPS61220 - 0.7V Boost Converter

Product Overview

Texas Instruments

Datasheet Details

Part number	TPS61220
Manufacturer	Texas Instruments
File Size	1.56 MB
Description	0.7V Boost Converter
Datasheet	TPS61220 Datasheet

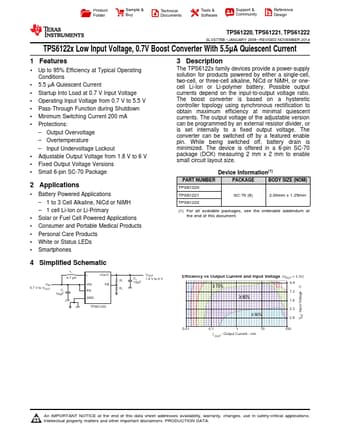

Additional preview pages of the TPS61220 datasheet.

Product details

Description

The TPS6122x family devices provide a power-supply solution for products powered by either a single-cell, two-cell, or three-cell alkaline, NiCd or NiMH, or onecell Li-Ion or Li-polymer battery.

Features

1 Up to 95% Efficiency at Typical Operating Conditions.
5.5 μA Quiescent Current.
Startup Into Load at 0.7 V Input Voltage.
Operating Input Voltage from 0.7 V to 5.5 V.
Pass-Through Function during Shutdown.
Minimum Switching Current 200 mA.
Protections:.
Output Overvoltage.
Overtemperature.
Input Undervoltage Lockout.
Adjustable Output Voltage from 1.8 V to 6 V.
Fixed Output Voltage Versi.
