TPS61222-EP - 0.7-V BOOST CONVERTER

Product Overview

Texas Instruments

Datasheet Details

Part number	TPS61222-EP
Manufacturer	Texas Instruments
File Size	956.31 KB
Description	0.7-V BOOST CONVERTER
Datasheet	TPS61222-EP Datasheet

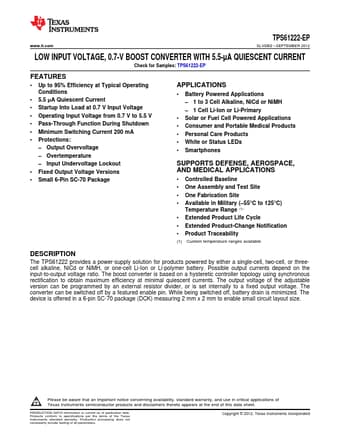

Additional preview pages of the TPS61222-EP datasheet.

Product details

Description

The TPS61222 provides a power-supply solution for products powered by either a single-cell, two-cell, or threecell alkaline, NiCd or NiMH, or one-cell Li-Ion or Li-polymer battery.

Features

1.
Up to 95% Efficiency at Typical Operating Conditions.
5.5 μA Quiescent Current.
Startup Into Load at 0.7 V Input Voltage.
Operating Input Voltage from 0.7 V to 5.5 V.
Pass-Through Function During Shutdown.
Minimum Switching Current 200 mA.
Protections:.
Output Overvoltage.
Overtemperature.
Input Undervoltage Lockout.
Fixed Output Voltage Versions.
Small 6-Pin SC-70 Package.
