TPS61500

LED Driver

TPS61500 Features

* 1 2.9-V to 18-V Input Voltage Range

* 3-A, 40-V Internal Power Switch

* Four 3-W LEDs From 5-V Input

* Eight 3-W LEDs From 12-V Input

* High-Efficiency Power Conversion: Up to 93%

* Frequency Set by External Resistor: 200 kHz to 2.2 MHz

* User

TPS61500 General Description

The TPS61500 is a monolithic switching regulator with integrated 3-A, 40-V power switch. It is an ideal driver for high brightness 1-W or 3-W LED. The device has a wide input voltage range to support application with input voltage from multi-cell batteries or regulated 5-V or 12-V power rails. The .

TPS61500 Datasheet (1.52 MB)

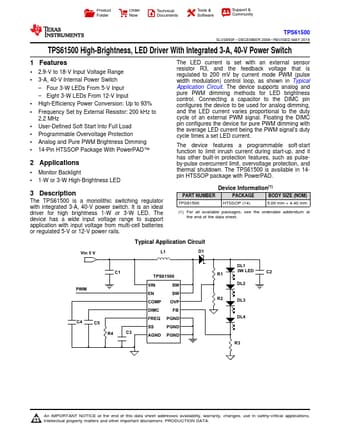

Preview of TPS61500 PDF

Datasheet Details

Part number:

TPS61500

Manufacturer:

Texas Instruments ↗

File Size:

1.52 MB

Description:

Led driver.
