UCC2895-EP

Phase-Shift PWM Controller

UCC2895-EP Features

* 1 Programmable Output Turnon Delay

* Adaptive Delay Set

* Bidirectional Oscillator Synchronization

* Capability for Voltage-Mode or Current-Mode Control

* Programmable Soft Start/Soft Stop and Chip Disable Via a Single Pin

* 0% to 100% Duty-Cycle Cont

UCC2895-EP General Description

The UCC2895-EP is a phase-shift pulse-width modulation (PWM) controller that implements control of a full-bridge power stage by phase shifting the switching of one half bridge with respect to the other. It allows constant frequency PWM in conjunction with resonant zero-voltage switching to provide h.

UCC2895-EP Datasheet (1.11 MB)

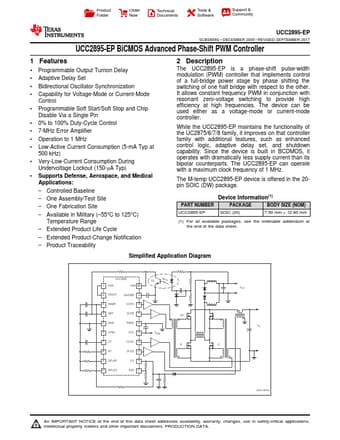

Preview of UCC2895-EP PDF
