UCC2895-Q1

Phase-Shift PWM Controller

UCC2895-Q1 Features

* 1

* Qualified for Automotive Applications

* Programmable Output Turn-On Delay

* Bidirectional Oscillator Synchronization

* Voltage-Mode, Peak-Current-Mode, or Average-Current-Mode Control

* Programmable Soft Start/Soft Stop and Chip Disable Via a Single Pin

UCC2895-Q1 General Description

The UCC2895-Q1 is a phase-shift pulse-width modulation (PWM) controller that implements control of a full-bridge power stage by phase shifting the switching of one half-bridge with respect to the other. It allows constant-frequency PWM in conjunction with resonant zero-voltage switching to provide h.

UCC2895-Q1 Datasheet (1.12 MB)

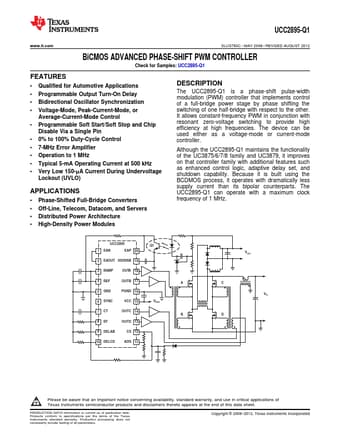

Preview of UCC2895-Q1 PDF

Datasheet Details

Part number:

UCC2895-Q1

Manufacturer:

Texas Instruments ↗

File Size:

1.12 MB

Description:

Phase-shift pwm controller.
UCC2895-Q1 www.ti.com SLUS783C

* MAY 2008

* REVISED AUGUST 2012 BiCMOS ADVANCED PHASE-SHIFT PWM CONTROLLER Check for Samples: UCC28.
